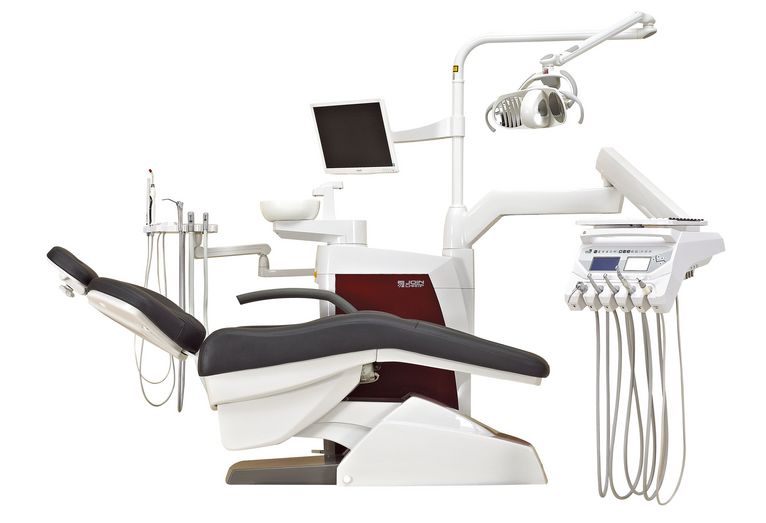

ZC-S700 integral dental unit is designed ergonomically and modernly. It's elegant and with great care of details. It's the best cost effective dental unit you can find in the market. It's designed with floor type unit and handmade micro-fibril leather upholstery. Compensated motion movement of chair and quick backrest movement (take only 9 seconds for the whole movement) makes patient feels great comfortable. It's with imported accessories such as chair motors, air spring, LED operation light, handpiece tube, solenoid valve and air filter. Thick chair base with imported steel unit frame makes S700 one of the most stable units.

Functional Feature

-FLEXIBILITY AND BALANCE

S700 integral dental unit, allows several configurations, according to the clients requirements, maintaining the same functionality and original stability.

-ERGOMONICS AND PRATICES

S700 integral dental unit, developed according to the ergonomic concepts of works, quality and modern design.

Details:

1)S700 rotary ceramic cuspidor is designed to be removed to make easy cleaning and disinfection.

2)Multi-functional assistant support with 5 holder positions. It incorporates the basic commands to support the dentist works. Standard 1 HVE (high vacuum ejector)

1 SE (saliva ejector) and three-way syringe. Optional for more

2 devices (Intra-oral camera, LED curing light and etc). It’s with splendid movement which can move to the most comfortable position for work.

3)Imported Faro LED light (MAIA)

The professional operation light helps a better operation.

Standard Configuration:

1. Deluxe thick leather seat with backrest and headrest: 1 set

2. Imported fast silent motor: 2 pieces

3.Nine recorded seat positions by programming

4. Compensating system for interaction

5.Multi-functional foot pedal

6. Patient chair with single armrest

7.Doctor stool (leather): 1 piece

8. Imported handpiece tubing: 3 pieces

9. Pressure gauge

10. 3-way syringe: 2 pieces (cold & warm)

11. External 24V X-ray viewer: 1 set

12. Control system with LCD display: 1 set

13. Detachable silica gel pad

14. Stainless steel (304#) instrument tray

15. Luxurious instrument tray

16. Saliva ejector  (water) and high volume evacuator (air) with imported Italian tubing

17. Seamless rotatable and removable ceramic cuspidor bowl or rotatable frosted glass cuspidor bowl

18.Imported Italian LED lamp with lamp arm(MAIA): 1 set

19. Anti-retraction system

20. Assistant control panel

21. Floor mounted unit box: 1 set (match with different colors)

Optional Device:

1. Top-mounted instrument tray

2. Control system for cart

3. Natural leather patient chair with backrest and headrest

4.Scaler

5.Curing Light

6.Intra-oral camera system

7. Monitor bracket

8. Built-in junction box

9.Patient chair with double armrests

10.High-speed air turbine handpiece

11. Low-speed air motor handpiece

Technical Parameters:

1. Power supply: 220V, 50/60Hz

2. Air source pressure: > 0.55 Mpa

3. Water source pressure: 0.2-0.4 Mpa
