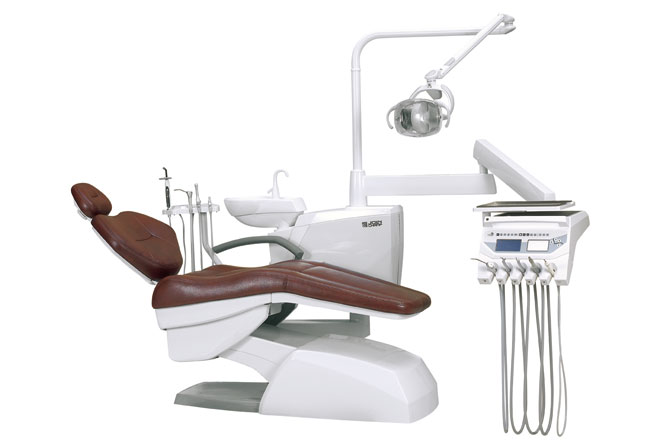

ZC-S600 Integral Dental Unit

Features

1.The ZC-S600 integral dental unit is a luxurious dental unit, and it is designed in accordance with ergonomics to bring extra comfort to both the dentist and the patient.

2.Our product has an elegant and streamlined look, whilst the backrest is of large radians to avoid uncomfortableness when it rises.

3.The pantograph arm, operating light, gas spring, major valve, suction tubing, silent low-voltage DC motor and other main components are all introduced from other countries.

4.Our integral dental unit is equipped with a LCD display to intuitively reveal the status of patient chair during operation.

Different dentists have different operation habits, so, our integrated dental treatment center is meticulously designed into three types to best fit everyone. The most commonly used one is hanging type, and the other two are top mounted type and mobile type.

Details:

1.The assistant’s module arm makes use of double spindles to realize flexible and large-area rotation, thus facilitating the work.

2.The instrument tray contains two separated trays, and the left one, namely the side tray, is able to rotate freely. The handpiece holder has a bigger depth which means the exposed parts of instruments are shortened, thereby ensuring safety during operation. Moreover, the dentist won’t feel awkward when working because the control panel and handpiece holder are of titled design.

3.The trays can be taken out easily for cleaning process, and high-temperature sterilization is applicable to minimize the cross-contamination risk.

Standard Configuration

a.Patient seat (leather) with backrest and headrest: 1 set

b.Imported silent high-speed motor: 2 pieces

c.Nine recorded seat positions by programming

d.Compensating system for interaction

e.Multi-functional foot pedal

f.Dentist stool (leather): 1 set

g.Imported handpiece tubing: 3 pieces

h.Pressure gauge

i.3-way syringe: 2 pieces (cold & warm)

j.Italian operation lamp and lamp arm (Faro EDI): 1 set

k.Built-in 24V X-ray viewer: 1 set

l.Control system with LCD display: 1 set

m.Detachable silica gel pad

n.Stainless steel (304#) instrument tray

o.Rotatable ceramic cuspidor

p.Saliva ejector (water) and high volume evacuator (air), both with Italian tubing

q.Anti-retraction system

r.Assistant control panel

Optional Device

1.Top-mounted instrument tray

2.Control system for cart

3.Scaler

4.Curing light

5.Control panel with 7-inch touch screen

6.Patient chair with double armrests

7.Intra-oral camera system

8.Monitor bracket

9.Built-in junction box

10.High-speed air turbine handpiece

11.Low-speed air motor handpiece

12.Electrical motor handpiece

Technical Parameters:

1. Power supply: 220V, 50/60Hz

2. Air source pressure: > 0.55 Mpa

3. Water source pressure: 0.2-0.4 Mpa
